Product Description

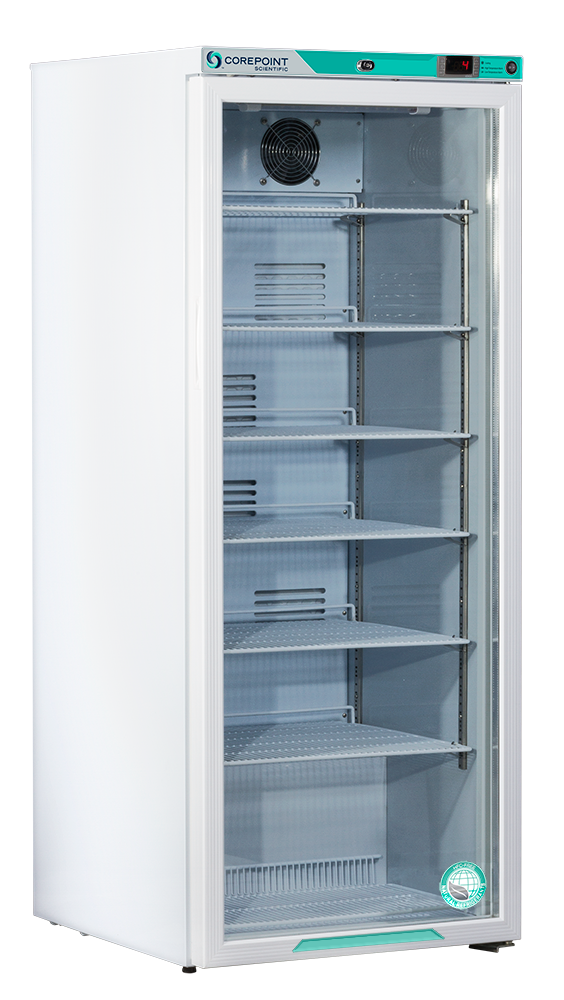

White Diamond Series Compact Laboratory Refrigerators have a smaller footprint allowing for flexibility with unit placement and enables you to maximize facility floor space. Compact units feature a microprocessor temperature controller and digital displays, allowing for precise temperature control, verification, and recovery, versus mechanical style thermostats. Critical samples are security backed with an extensive package of audible and visual alarms. Models are UL/C-UL Listed, include a full 3-year comprehensive warranty, and utilize environmentally friendly, natural, Hydrocarbon (HC) refrigerants.
Environmental
We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Disclaimer
Freestanding Models require 4” of clearance around the back and sides of the unit for proper ventilation.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
10.5 Cu. Ft. Capacity
Door
One glass swing door, right hinged, Magnetic door gasket for positive seal
Shelves
Six adjustable shelves
Mounting
Leveling legs
Interior Lighting
LED interior lights are safety shielded and switch controlled
External Probe Access
Probe access port (3/8")
Insulation
High density urethane foam cabinet and door insulation
Exterior Material
Powder coat steel
Interior Material
Powder coat steel
Access Control
Keyed door lock
General Warranty
Three year parts and labor
Compressor Warranty
Two year compressor parts only
Weight(lbs.)
175
Shipping Weight(lbs.)
210
HP
1/3
Rated Amperage
2.3
Power Plug/Cord
NEMA 5-15
Electrical Requirement
115V, 60 Hz
Refrigerant
R600a
Air Flow
Forced draft air circulation
Defrost
Cycle
Controller technology
Microprocessor temperature controller
Display
Digital temperature display
Battery Backup
Yes
Temperature setpoint range
1°C to 10°C
Display probe
2 probes; 1 in air and 1 in sample bottle
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high and low temperature alarms
Dimensions
Exterior Width: 23 3/4”
Exterior Depth: 26 1/2”
Exterior Height: 59”
Interior Width: 18 3/8”
Interior Depth: 19 7/8”
Interior Height: 53 1/2”
Additional Specs
Door Swing: Right hinged”
- Microprocessor temperature controller
- Digital temperature display
- Yes
- 1°C to 10°C
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Audible and visual high and low temperature alarms
