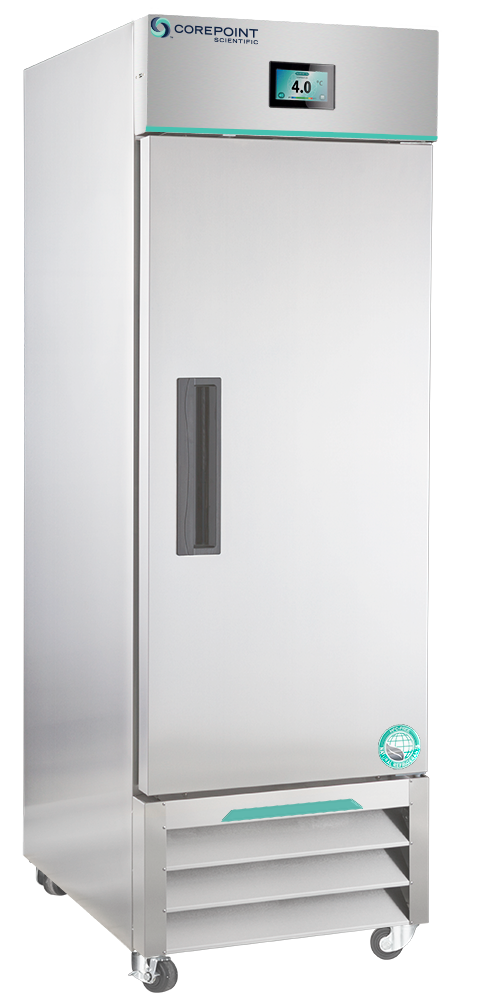

REFRIGERATOR, LABORATORY STAINLESS STEEL 23 CU. FT. SOLID DOOR
Product Model : NSWDR231SSS/0
Product Description
White Diamond Series Glass Door Laboratory and Medical Stainless Steel Refrigerator with Microprocessor temperature controller. This unit features hydrocarbon natural refrigerants and a touch screen digital temperature display with user friendly interface. Audible and visual high/low alarms and remote alarm contacts are some of the features of this well rounded unit.
Environmental
We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
23 Cu. Ft. Capacity
Door

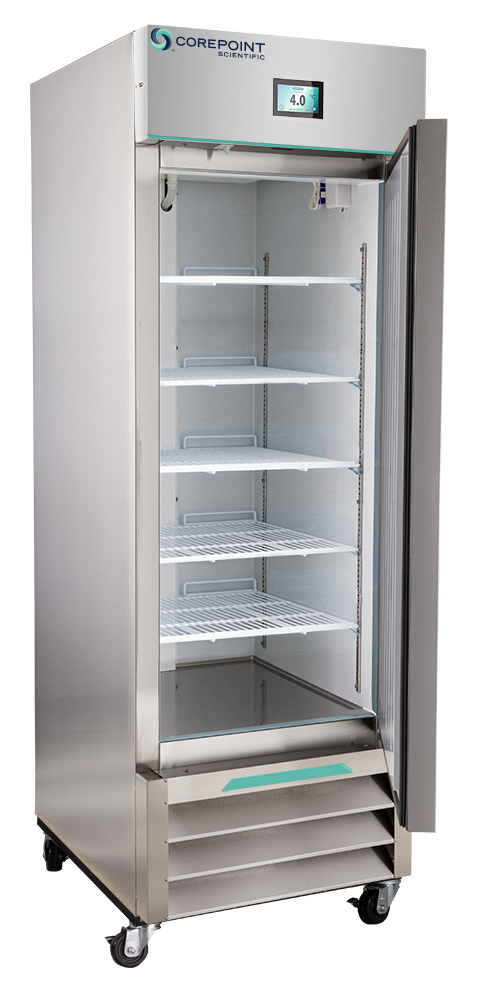

One swing solid door, self-closing, right hinged
Shelves
Five Adjustable
Mounting
4 swivel casters (5 3/4")
Interior Lighting
LED interior lights are safety shielded and switch controlled
External Probe Access
Probe access port (3/8")
Insulation
High density urethane foam cabinet and door insulation
Exterior Material
Stainless steel exterior
Interior Material
Stainless steel interior
Access Control
Keyed door lock
General Warranty
3 year parts and labor
Compressor Warranty
5 year compressor warranty
Weight(lbs.)
285 lbs.
Shipping Weight(lbs.)
311 lbs.
HP
1/5
Rated Amperage
3
Power Plug/Cord
NEMA-5-15P
Electrical Requirement
115V, 60 Hz
Refrigerant
R290
Air Flow
Forced draft air circulation
Defrost
Cycle
Controller technology
Microprocessor temperature controller
Display
Touch Screen Digital Temperature Display with user friendly interface
Battery Backup
Yes
Access
USB port for data transfer and software updates
Temperature setpoint range
1°C to 10°C
Display probe
2 probes; 1 in air and 1 in sample bottle
External alarm connection
Remote alarm contacts
Alarms
Sensor error alarm Power failure alarm Door ajar alarm Low battery alarm, alarm validation (audible, visual, and remote alarm) Alarm mute with ring back Remote alarm contacts Customizable alarm time delay settings
Dimensions
Exterior Width: 26 7/8”
Exterior Depth: 33 3/4”
Exterior Height: 83 1/4”
Interior Width: 19 1/2”
Interior Depth: 20”
Interior Height: 49 1/4”
Additional Specs
Door Swing: Right”
- Microprocessor temperature controller
- Touch Screen Digital Temperature Display with user friendly interface
- Yes
- USB port for data transfer and software updates
- 1°C to 10°C
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Sensor error alarm Power failure alarm Door ajar alarm Low battery alarm, alarm validation (audible, visual, and remote alarm) Alarm mute with ring back Remote alarm contacts Customizable alarm time delay settings
