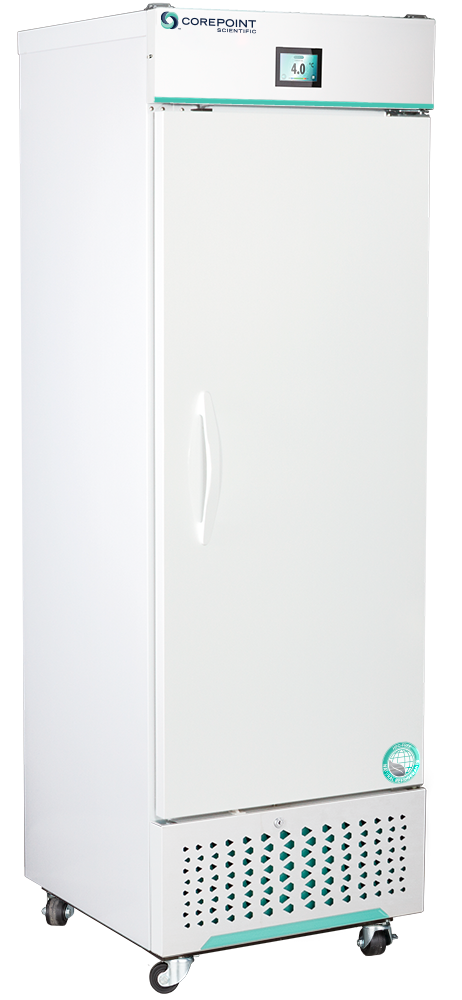

REFRIGERATOR, LABORATORY 16 CU. FT. SOLID DOOR

Product Model : NSWDR161WWS/0

Request a Quote

Product Description

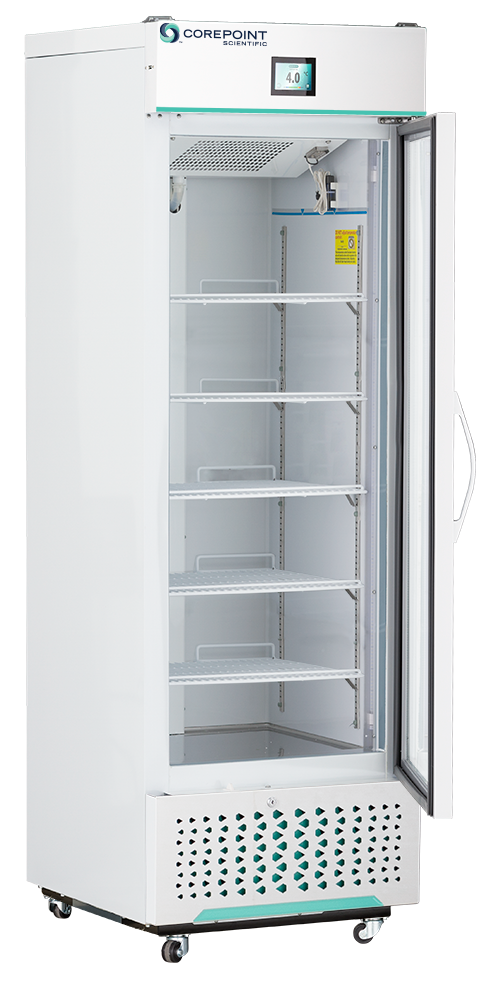

White Diamond Series Glass Door Laboratory and Medical Stainless Steel Refrigerator with Microprocessor temperature controller. This unit features hydrocarbon natural refrigerants and a touch screen digital temperature display with user friendly interface. Audible and visual high/low alarms and remote alarm contacts are some of the features of this well rounded unit.

Environmental

We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Operational Environment

Not to exceed 75°F, 50% RH

Storage Capacity

16 Cu. Ft. Capacity

Door

One swing glass door, self-closing (energy efficient, double pane vacuuminsulated), right hinged, Magnetic door gasket for positive seal

Shelves

Five Adjustable

Mounting

4 swivel casters (5 3/4")

Interior Lighting

LED interior lights are safety shielded and switch controlled

External Probe Access

Probe access port (3/8")

Insulation

High density urethane foam cabinet and door insulation

Exterior Material

Powder coat exterior

Interior Material

Powder coat steel

Access Control

Key lock

General Warranty

2 year parts and labor

Compressor Warranty

5 year compressor warranty

Weight(lbs.)

243 lbs.

Shipping Weight(lbs.)

283 lbs.

HP

1/5

Rated Amperage

3

Power Plug/Cord

NEMA-5-15P

Electrical Requirement

115V, 60 Hz

Refrigerant

Hydrocarbon natural refrigerant (R290)

Air Flow

Forced draft air circulation

Defrost

Cycle

Access

USB port for data transfer and software updates

Temperature setpoint range

1°C to 10°C

Alarms

Visual alarm indicator, Audible alarm indicator, Process phase specific temp alarm, Process phase specific humidity alarm, Power failure alarm, Sensor failure alarm

Dimensions

Exterior Width: 25”

Exterior Depth: 29 3/4”

Exterior Height: 79 3/4”

Interior Width: 19 1/2”

Interior Depth: 20”

Interior Height: 49 1/4”

Additional Specs

Door Swing: Right”

Ext Cutsheet

Int Cutsheet

Specsheet
