Product Description

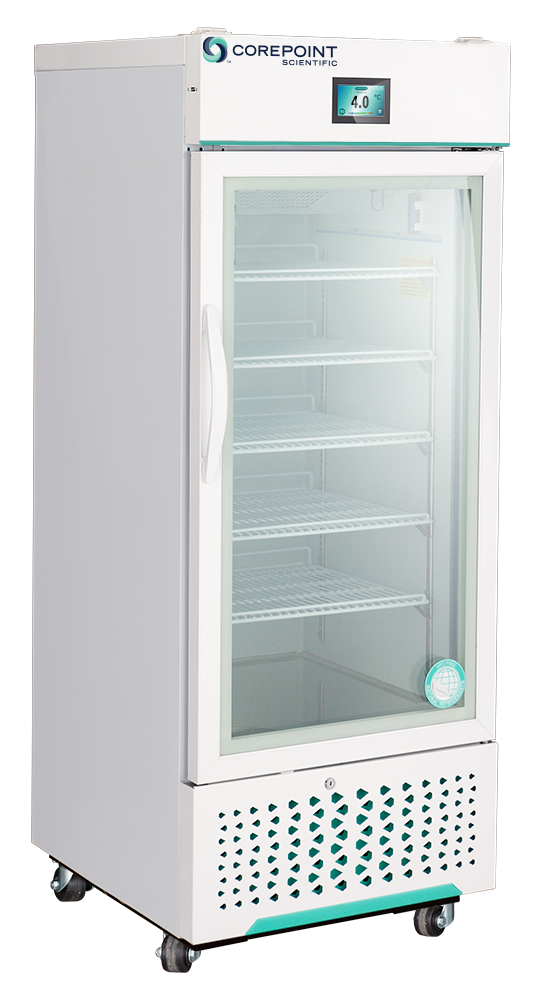

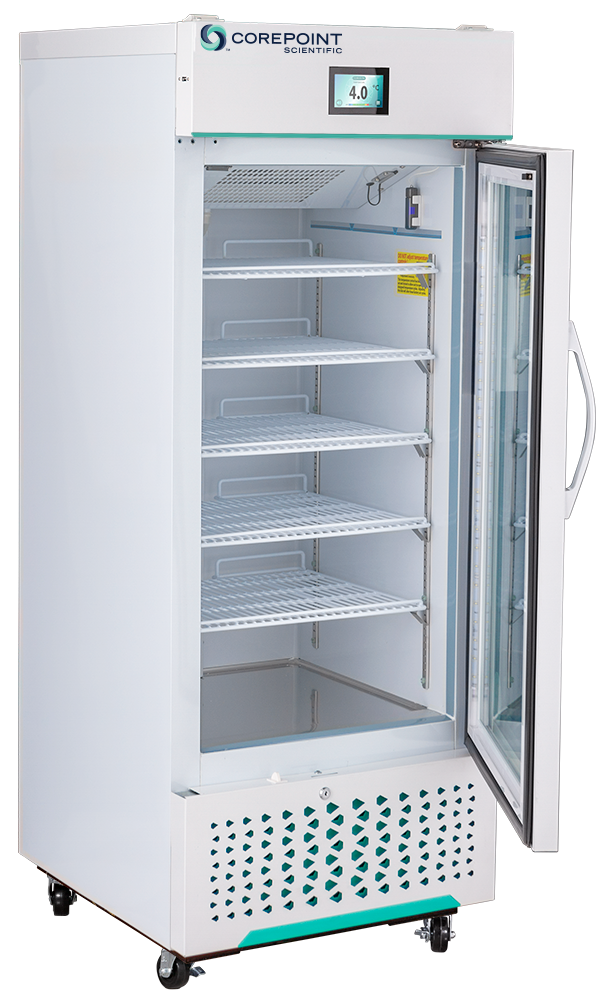

White Diamond Series Glass Door Laboratory and Medical Stainless Steel Refrigerator with Microprocessor temperature controller. This unit features hydrocarbon natural refrigerants and a touch screen digital temperature display with user friendly interface. Audible and visual high/low alarms and remote alarm contacts are some of the features of this well rounded unit.
Environmental
We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
12 Cu. Ft. Capacity
Door
One swing glass door, self-closing (energy efficient, double pane vacuuminsulated), right hinged, Magnetic door gasket for positive seal
Shelves
Five Adjustable
Mounting
4 swivel casters (5 3/4")
Interior Lighting
LED interior lights are safety shielded and switch controlled
External Probe Access
Probe access port (3/8")
Insulation
High density urethane foam cabinet and door insulation
Exterior Material
Powder coat exterior
Interior Material
Powder coat steel
Access Control
Key lock
General Warranty
2 year parts and labor
Compressor Warranty
5 year compressor warranty
Weight(lbs.)
258 lbs.
Shipping Weight(lbs.)
285 lbs.
HP
1/5
Rated Amperage
3
Power Plug/Cord
NEMA-5-15P
Electrical Requirement
115V, 60 Hz
Refrigerant
Hydrocarbon natural refrigerant (R290)
Air Flow
Forced draft air circulation
Defrost
Cycle
Access
USB port for data transfer and software updates
Temperature setpoint range
1°C to 10°C
Alarms
Visual alarm indicator, Audible alarm indicator, Process phase specific temp alarm, Process phase specific humidity alarm, Power failure alarm, Sensor failure alarm
Dimensions
Exterior Width: 25”
Exterior Depth: 29 3/4”
Exterior Height: 66 1/2”
Interior Width: 19 1/4”
Interior Depth: 19 3/4”
Interior Height: 36 1/4”
Additional Specs
Door Swing: Right”
- USB port for data transfer and software updates
- 1°C to 10°C
- Visual alarm indicator, Audible alarm indicator, Process phase specific temp alarm, Process phase specific humidity alarm, Power failure alarm, Sensor failure alarm
