Product Description

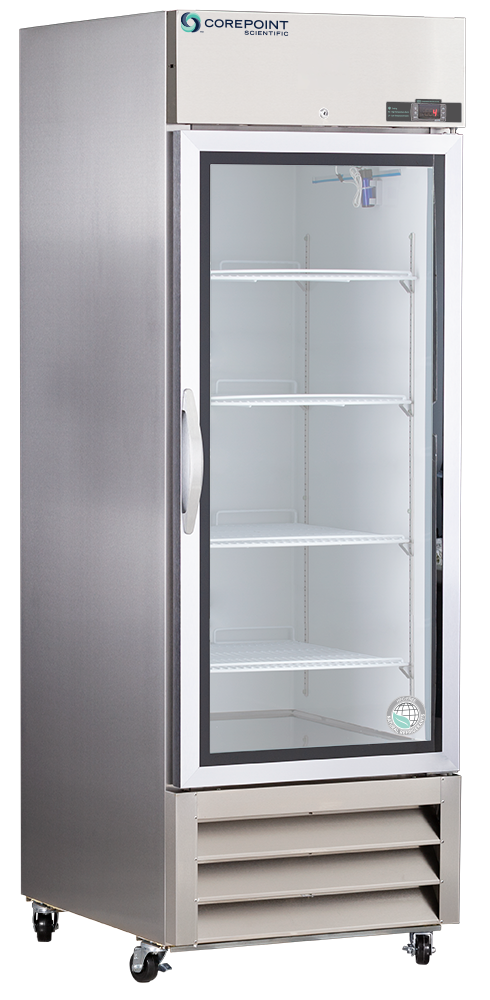

General Purpose Glass Door Stainless Steel Refrigerator with digital display microprocessor temperature controller. This unit features hydrocarbon natural refrigerants and sensor error alarm and remote alarm contacts. Audible and visual high/low alarms and forced draft circulation are some of the features of this well rounded unit.
Environmental
We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
23 Cu. Ft. Capacity
Door
One swing glass door, self-closing, right hinged, not reversible
Shelves
4 Adjustable Shelves
Mounting
4 swivel casters (5 3/4")
Interior Lighting
LED interior lights are safety shielded and switch controlled
External Probe Access
Probe access port (3/8")
Insulation
High density urethane foam cabinet and door insulation
Exterior Material
Powder coat exterior
Interior Material
Powder coat steel
Access Control
Keyed door lock
General Warranty
2 Year Parts And Labor Warranty
Compressor Warranty
3 year compressor parts only
Weight(lbs.)
325 lbs.
Shipping Weight(lbs.)
356 lbs.
HP
1/5 H.P.
Rated Amperage
3
Power Plug/Cord
NEMA-5-15P
Electrical Requirement
115V, 60 Hz
Refrigerant
R290
Air Flow
Forced draft air circulation
Defrost
Cycle
Controller technology
Digital display microprocessor temperature controller
Display
Digital temperature display
Battery Backup
Yes
Temperature setpoint range
1°C to 10°C
Display probe
2 probes; 1 in air and 1 in sample bottle
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high and low temperature alarms
Dimensions
Exterior Width: 26 3/4”
Exterior Depth: 34 3/4”
Exterior Height: 83 1/4”
Interior Width: 24 5/8”
Interior Depth: 22”
Interior Height: 52 1/2”
Additional Specs
Door Swing: Right”
- Digital display microprocessor temperature controller
- Digital temperature display
- Yes
- 1°C to 10°C
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Audible and visual high and low temperature alarms
