Product Description

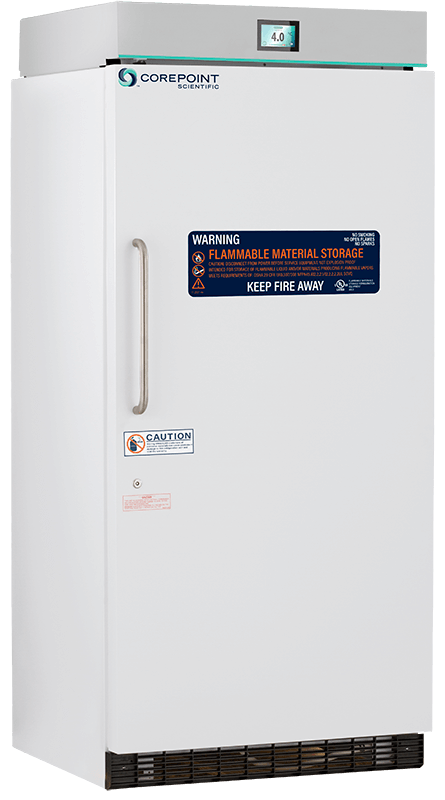

White Diamond Series Flammable Storage Refrigerators meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety. These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.
Environmental
Utilizes CFC-Free Refrigerant (R404A), foam insulation and packaging
Disclaimer
These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
30 Cu. Ft.
Door
1 Solid Swing Door, Right Hinged, Magnetic Door Gasket for Positive Seal
Shelves
FIVE ADJUSTABLE SHELVES
Mounting
LEVELING LEGS
External Probe Access
Probe Access Port (3/8")
Insulation
HIGH DENSITY URETHANE FOAM CABINET AND DOOR INSULATION
Access Control
Keyed door lock
General Warranty
THREE YEAR PARTS AND LABOR WARRANTY
Weight(lbs.)
361
Shipping Weight(lbs.)
421
HP
1/3 H.P.
Rated Amperage
6
Power Plug/Cord
Factory Sealed Wires Only
Electrical Requirement
115V, 60HZ, 6 AMPS, 1/3 HP
Refrigerant
CFC-free refrigerant (R404a)
Defrost
CYCLE
Controller technology
MICROPROCESSOR TEMPERATURE CONTROLLER
Battery Backup
Alarm Module with battery back-up to support temperature monitoring and alarmsPassword-protected control panel
Temperature setpoint range
1°C – 10°C
Alarms
AUDIBLE AND VISUAL HIGH AND LOW TEMPERATURE ALARMS
Dimensions
Exterior Width: 35 3/4”
Exterior Depth: 35”
Exterior Height: 78 1/2”
Interior Width: 22 1/2”
Interior Depth: 32”
Interior Height: 65”
Additional Specs
Door Swing: Right”
- MICROPROCESSOR TEMPERATURE CONTROLLER
- Alarm Module with battery back-up to support temperature monitoring and alarmsPassword-protected control panel
- 1°C – 10°C
- AUDIBLE AND VISUAL HIGH AND LOW TEMPERATURE ALARMS
