Product Description

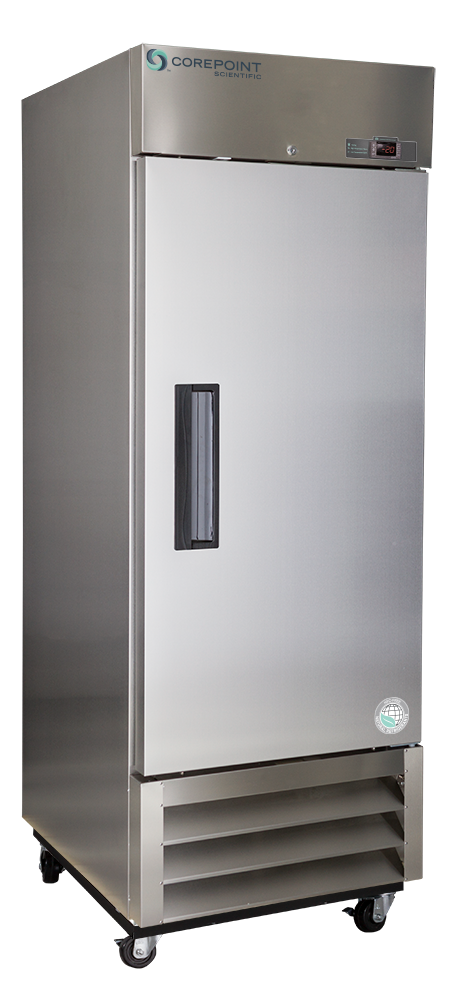

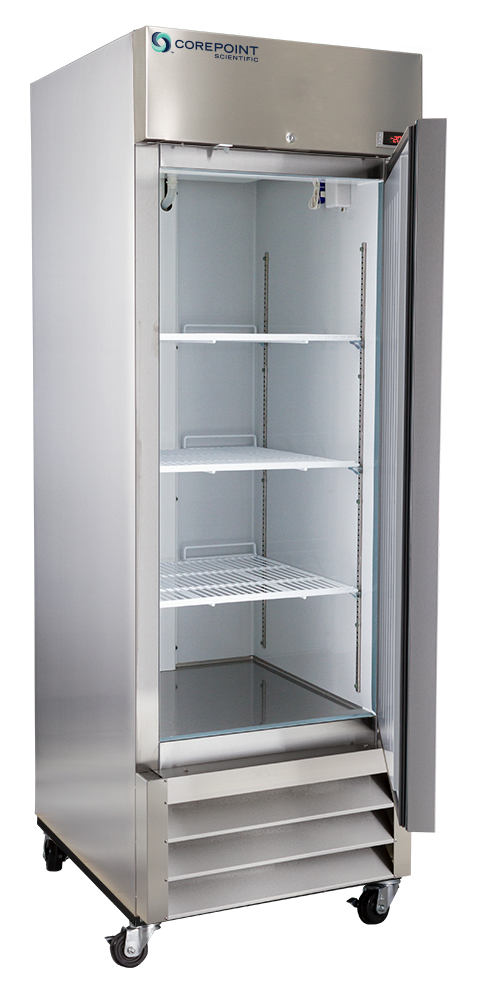

General Purpose Solid Door Stainless Steel Freezer with digital display microprocessor temperature controller. This unit features hydrocarbon natural refrigerants and sensor error alarm and remote alarm contacts. Audible and visual high/low alarms and forced draft circulation are some of the features of this well-rounded unit. Please see below for more details.
Environmental
We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Disclaimer
Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
23 Cu. Ft. Capacity
Door
One swing solid door, self-closing, right hinged, not reversible
Shelves
3 Adjustable Shelves
Mounting
4 swivel casters (5 3/4")
Interior Lighting
LED interior lights are safety shielded and switch controlled
External Probe Access
Probe access port (3/8")
Insulation
High density urethane foam cabinet and door insulation
Exterior Material
Powder coat exterior
Interior Material
Powder coat steel
Access Control
Keyed door lock
General Warranty
2 Year Parts And Labor Warranty
Compressor Warranty
3 year compressor parts only
Weight(lbs.)
295 lbs.
Shipping Weight(lbs.)
327 lbs.
HP
3/4 H.P
Rated Amperage
8
Power Plug/Cord
NEMA-5-15P
Electrical Requirement
115V, 60 Hz
Refrigerant
R290
Air Flow
Forced draft air circulation
Defrost
Auto
Controller technology
Digital display microprocessor temperature controller
Display
Digital temperature display
Battery Backup
Yes
Temperature setpoint range
'-15°C – -25°C
Display probe
2 probes; 1 in air and 1 in sample bottle
External alarm connection
Remote alarm contacts
Alarms
Audible and visual high and low temperature alarms
Dimensions
Exterior Width: 26 7/8”
Exterior Depth: 36 3/8”
Exterior Height: 81 1/2”
Interior Width: 26 1/2”
Interior Depth: 22”
Interior Height: 59”
Additional Specs
Door Swing: Right”
- Digital display microprocessor temperature controller
- Digital temperature display
- Yes
- '-15°C – -25°C
- 2 probes; 1 in air and 1 in sample bottle
- Remote alarm contacts
- Audible and visual high and low temperature alarms
