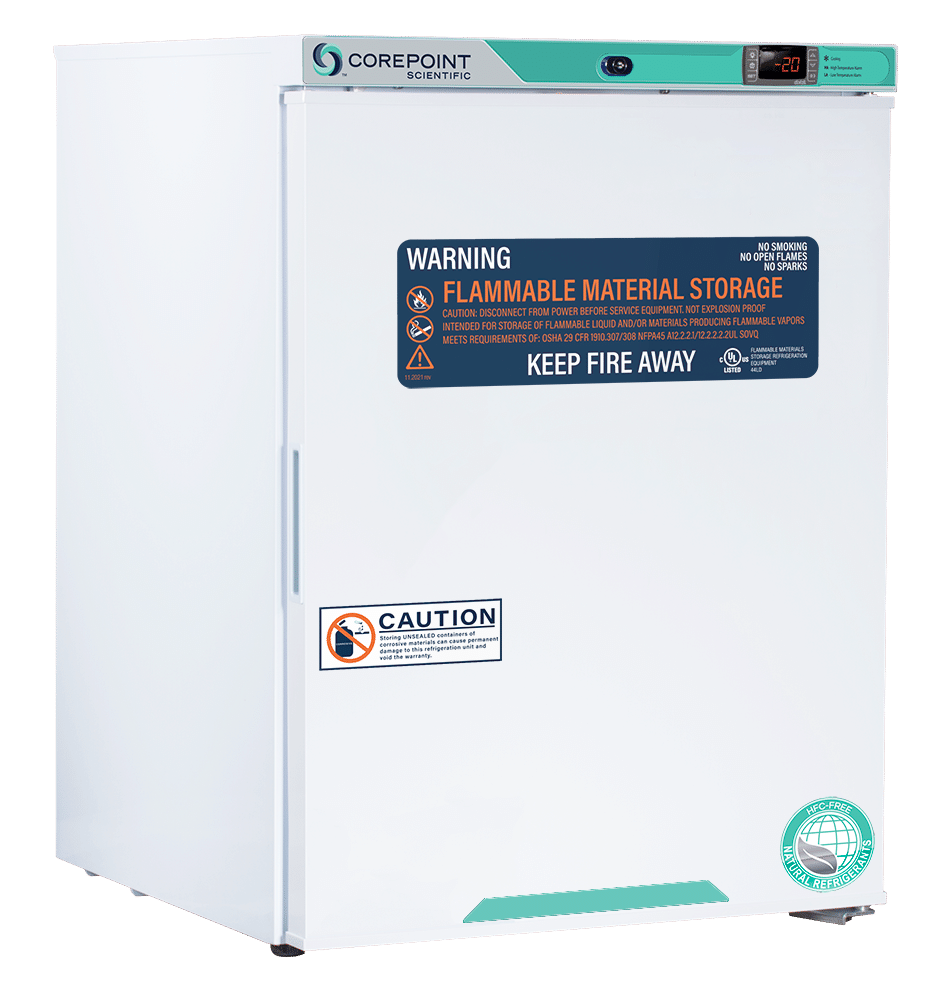

FREEZER FLAMMABLE STORAGE UNDERCOUNTER 4 CU.FT. MANUAL DEFROST

Product Model : FF051WWW/0M

Request a Quote

Product Description

White Diamond Series Flammable Storage Undercounter Freezers meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety. These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.


Environmental

We are an industry leader in providing a variety of Refrigerators and Freezers that are built with Hydrocarbon Refrigerants. Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.


Disclaimer

These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist. **NOTE: Freestanding Models require 4” of clearance around the back and sides of the unit for proper ventilation.

Operational Environment
Not to exceed 75°F, 50% RH
Storage Capacity
4 Cu. Ft.
Door
1 Solid Swing Door, Right Hinged, Magnetic Door Gasket for Positive Seal

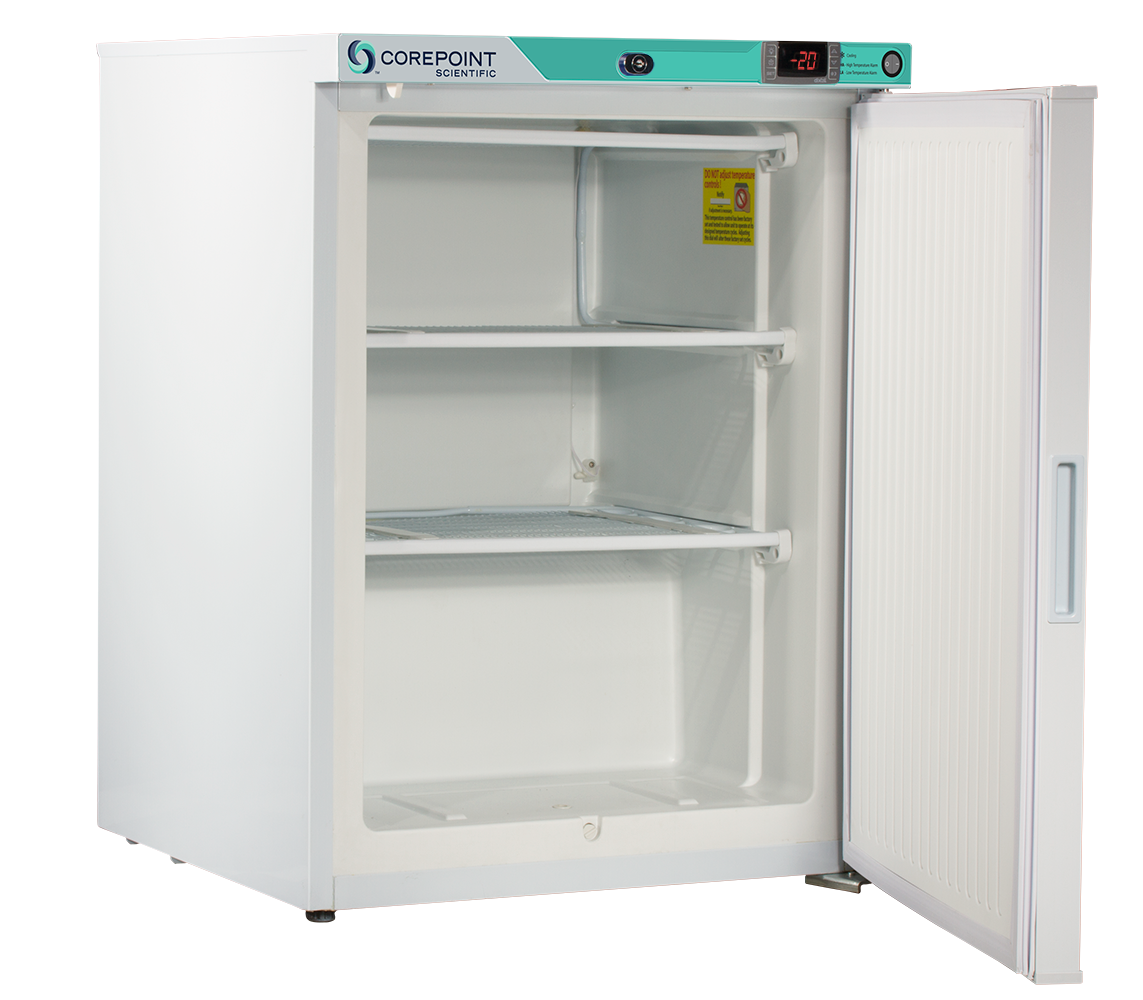

Shelves
2 fixed shelves with three removable baskets
Mounting
LEVELING LEGS
External Probe Access
Probe Access Port (3/8")
Insulation
HIGH DENSITY URETHANE FOAM CABINET AND DOOR INSULATION
Access Control
Keyed door lock
General Warranty
THREE YEAR PARTS AND LABOR WARRANTY
Compressor Warranty
Two year compressor parts only
Weight(lbs.)
91
Shipping Weight(lbs.)
118
HP
1/8
Rated Amperage
1.4
Power Plug/Cord
Factory Sealed Wires Only
Electrical Requirement
115V, 60HZ, 1.4 AMPS, 1/8 HP
Refrigerant
HFC-free refrigerant (R600a), foam insulation and packaging
Defrost
MANUAL
Controller technology
MICROPROCESSOR TEMPERATURE CONTROLLER
Temperature setpoint range
'-15°C – -25°C
Alarms
AUDIBLE AND VISUAL  HIGH AND LOW TEMPERATURE ALARMS

Dimensions

Exterior Width: 23 5/8”

Exterior Depth: 24 1/4”

Exterior Height: 32 1/5”

Interior Width: 16”

Interior Depth: 19”

Interior Height: 26”

Additional Specs

Door Swing: Right”
